Description

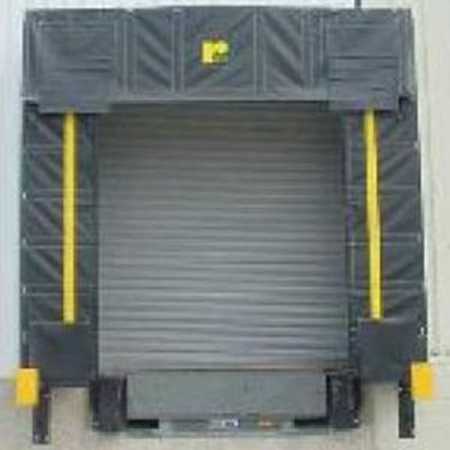

Rotary Products Inc. Compression Dock Seals are designed to provide an efficient air seal between the truck trailer and the indoor warehouse area.
Approximately 35 years of proven design along with the use of high specification materials, enables our dock seals to resist abrasion under compression, and provide full recovery after compression, even at variable temperatures. Maximum compression by docked vehicles is controlled by dock bumpers.
Custom Built Compression Seals have header pads with projections from 8″ to 21″. Choices of materials are 22 oz. Vinyl, 40 oz. Vinyl, 40 oz. High Tear Duroprene, and 40 oz. Hypalon. Other options include belting guards, bumper seals, wear shields, snow hoods, fire retardant material, custom logos, and weather stripping.
C Series Compression Seals
With a projection from 8″ to 21″ in 1″ increments this dock seal is custom built to serve your needs.
Choice of material offered:
22 oz. Vinyl
40 oz. Vinyl
40 oz. High Tear Duroprene
40 oz Hypalon
Ventilation holes provide fast air escape when the truck backs in, and quick recovery when it pulls out. Dock Seal is equipped with safety yellow guide stripes.
Key To Dock Seal Model Numbers & Recommended Sizes For Standard Door Openings
C – Compression Seal
Z – Super Wedge
MC – Top Curtain Header
AC – Adjustable Top Curtain Header
Recommendations For Standard Door Sizes
(Recommendations are based on 46″ to 50″ dock height.)
Note: 10″ projection on below models is arbitrary. Use bumper projection plus 4″ to 5″.
| Door Size | Model | Number | Vertical Length | Common Options Used |
| 8′ w x 8′ h | Compression Seal | C10W | 8′ | 18″ Header |
| 8′ w x 9′ h | Compression Seal | C10W | 9′ | 12″ Drop Curtain |
| 8′ w x 10′ h | Compression Seal | C10W-MC | 10′ | Curtain Style Header |
| 9′ w x 8′ h | Super Wedge | Z10N | 8′ | 18″ Header |
| 9′ w x 9′ h | Super Wedge | Z10N | 9′ | 12″ Drop Curtain |
| 9′ w x 10′ h | Super Wedge | Z10N-MC | 9′ | Curtain Style Header |
| 10′ w x 8′ h | Super Wedge | Z10T | 8′ | 18″ Header |
| 10′ w x 9′ h | Super Wedge | Z10T | 9′ | 18″ Header |
| 10′ w x 10′ h | Super Wedge | Z10T-MC | 10′ | Curtain Style Header |
Compression Seal Installation Instructions
SUBMITTAL DRAWINGS C_W 8X8 COMPRESSION SEAL
SUBMITTAL DRAWING C_W 8X9 COMPRESSION SEAL
SUBMITTAL DRAWING C_W-MC 8X10 COMPRESSION SEAL
SUBMITTAL DRAWING Z_N 9X8 COMPRESSION SEAL
SUBMITTAL DRAWING Z_N 9X9 COMPRESSION SEAL
SUBMITTAL DRAWING Z_N-MC 9X10 COMPRESSION SEAL
SUBMITTAL DRAWING Z_T 10X8 COMPRESSION SEAL
SUBMITTAL DRAWING Z_T 10X9 COMPRESSION SEAL
SUBMITTAL DRAWING Z_T-MC 10X10 COMPRESSION SEAL
